Traveling table column broaching machine for broaching tools and keyway

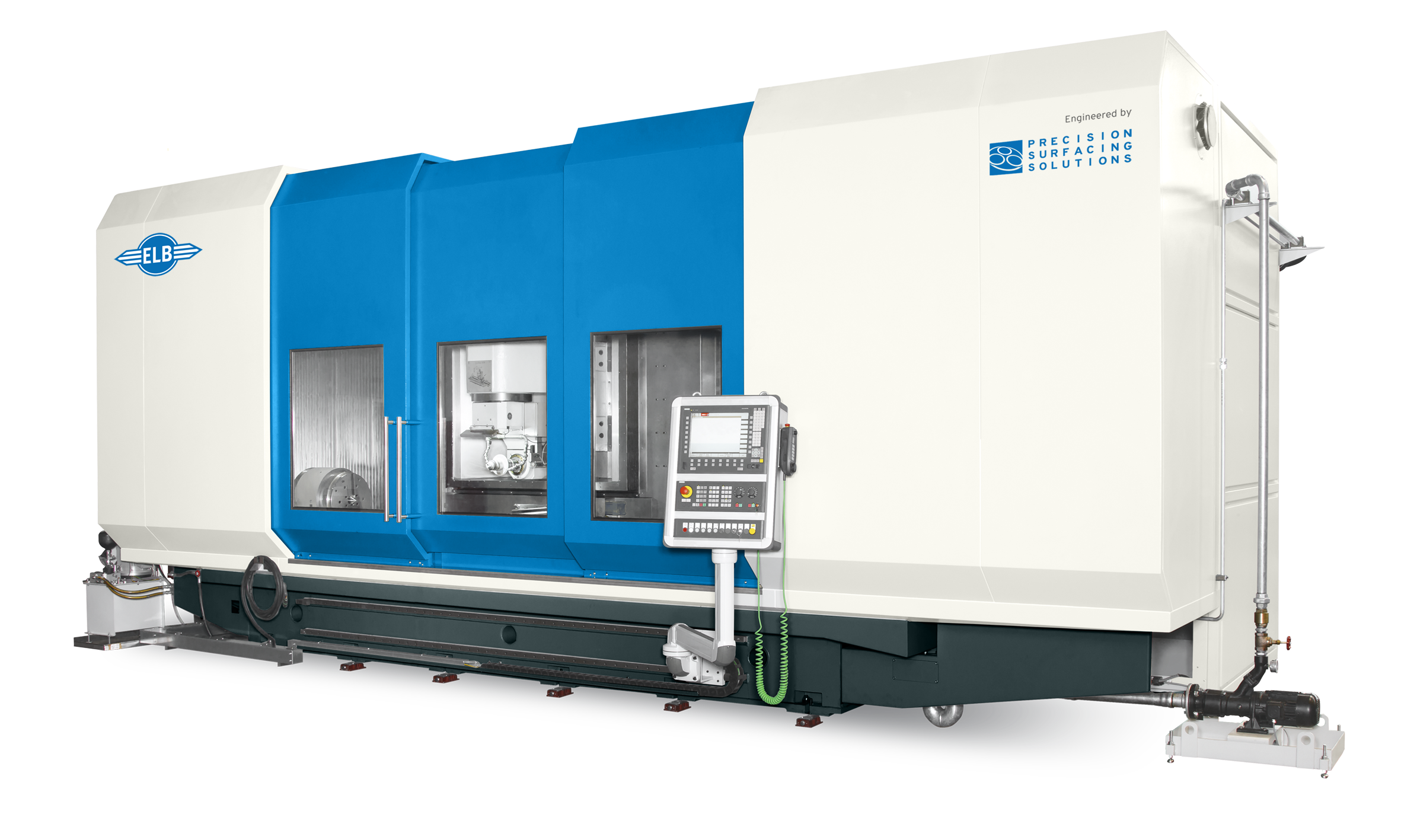

broachLine BG

The BG handles the grinding of flat and round broaches with ease. It finds its place mainly in the automotive and aerospace industries. Design and programming of the BG is based on many years of design and manufacturing experience in the broaching machine tool industry. The BG signifies not only a machine concept but also a complete technology package consisting of machine and competence in broaching tool manufacturing.

The BG 1000 / 2000-T models are very compact traveling table machines for the grinding of broaches up to 200 mm diameter. They are designed to grind straight and helical teeth with very stable grinding behavior.

The BG 2000 / 3000-C models are based on the moving column principle and display very consistent machining even on very heavy workpieces. They are designed for broaches up to 600 mm diameter. The distinguishing characteristics are profile precision, maintaining center and ease of use. Grinding of inner features is available as an option.

  • High-precision profile machine for tool and mold industry
  • Good cost-performance ratio
  • Flexible process guidance
  • Robust design
  • Easy to program

Design Characteristics

  • Robust construction
  • Large drives and high grinding capacity
  • Open access to grinding area for easy loading
  • Quick set-up change from round to rectangular broaching tools

Machine Concept

  • Traveling table design for tools up to Ø 200 mm
  • Traveling column design for tools up to Ø 600 mm
  • Both models optional grinding of inner features
  • Design and software suited for all profile grinding tasks on round and flat workpieces
  • Very versatile

broachLine BG (straight)

BG 1000S-T

BG 2000S-T

BG 2500S-T

BG 3000S-C

Table Drive

KGT

LiMo

Distance between Centers (mm)

1000

2000

2500

3000

Height of Centers (mm)

280

400

Workpiece Diameter (mm)

10 - 200

20 - 600

Spindle Power (kW)

30

Grinding Wheel (mm)

40 - 300 (400) x 50

broachLine BG (helical)

BG 1000 H-T

BG 2000 H-T

BG 2500 H-T

BG 3000 S-C

Swivel angle (°)

+/- 120

All values are approximated and may change depending on selected options. All information is subject to change. Home

Download DataSheet broachLine BG

Inquiry Form

* Indicates A Required Field

I read and understood the privacy policy which can be found in the footer of this page.
