Robust and economical

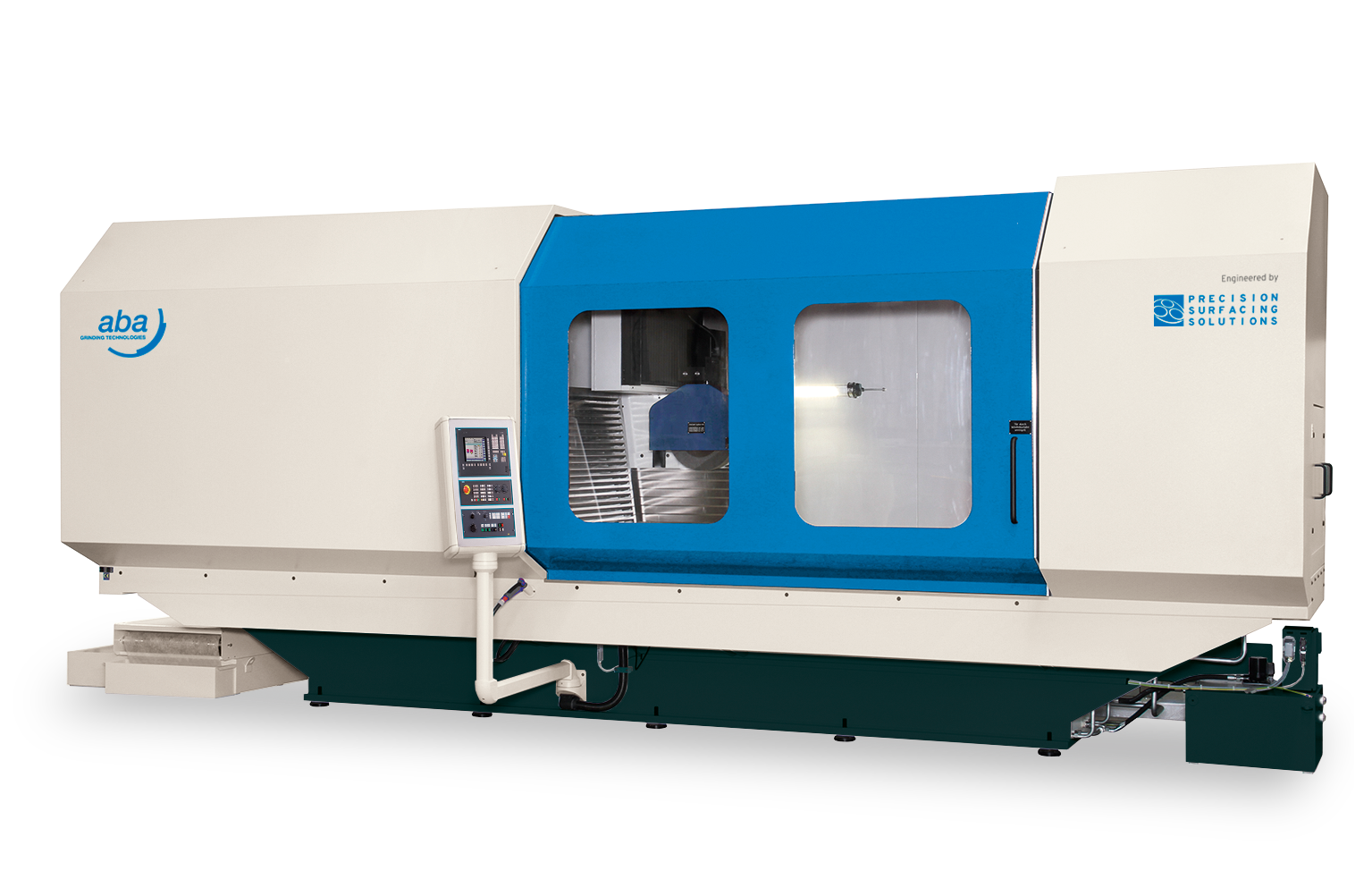

The mono-base design of the multiLine models allows grinding widths (Z-axis) of up to 1020 mm. The compact, steel base designed multiLine model is equipped with linear guides in all three axes. The feed axes Y and Z are driven via servo motors and ball screws. For machines up to 2000 mm the table is driven via ball screw (KGT). For longer tables up to 4000 mm a linear motor (LiMo) is used.
The standard version of the multiLine comes with high-precision linear scales for positioning of the vertical axis. The direct drive grinding spindle with up to 26 kW guarantees optimal torque transfer. The partial enclosure allows easy monitoring of the grinding process. To meet your requirements this model can easily be customized through a large variety of available options.
Our dressing units to sharpen, under-cut and profile grinding wheels complement the machine concept. The multiLine is available with the Siemens SINUMERIK MC or Siemens SINUMERIK ONE control.
Benefit Overview
- Large cross reach
- Grinding spindle with pre-loaded precision bearings
- Very high table load capacity
- Large variety of options available
|
multiLine |
10 |
15 |
20 |
30 |
40 |
60 |
|
Grinding Length (mm) |
1000 |
1500 |
2000 |
3000 |
4000 |
6000 |
|
Grinding Width (mm) |
700 / 900 |
|||||
|
Distance Spindle Center to Table (mm) |
920 / 1120 |
|||||
|
Spindle Power (kW) |
11 / 22 / 37 |
|||||
|
Grinding Wheel (mm) |
400 x 60 x 127 |
500 x 100 x 203 |
||||
All values are approximated and may change depending on selected options. All information is subject to change.
Download DataSheet multiLine
